on & off grid solar system

51.2H LiFePo4 Lithium-Ionen-Akku 100ah 5kwh Lithium-Akku für die Energiespeicherung zu Hause

Home Energiespeicher 51.2H LiFePo4 Lithium-Ionen
  • Typ:

    Off-Grid


Besonderheit:
Gute Hochtemperaturleistung
Sichere Lithium-Eisenphosphat-Technologie
Hohe Energiedichte und Umwandlungseffizienz
Lebensdauer: 2000 Zykluszeiten
Umweltfreundlich, ohne Schwermetalle
Komplett mit integriertem Batteriemanagementsystem
Kann Wechselstrom- und Solarladegeräte für dieses System verwenden
Niedrige Selbstentladungsrate
Einfache Installation, kann in einem Standardschrank oder an der Wand montiert werden
Eingebauter automatischer Schutz für Überladung, Überentladung&Übertemperaturbedingungen
Hohe Energiedichte 120-130kwh/kg, sogarhohe Entladungsrate, während eine hohe Energiekapazität beibehalten wird.
Erhöhte Flexibilität: Modulares Design ermöglicht Bereitstellung
Gute Entladung mit hoher Rate und ausgezeichnete Stabilität
Intelligentes Chipdesign, ausgezeichnete Speicherkapazität der Batterie

Anwendungen:

Die Batterie ist für industrielle, gewerbliche oder private Zwecke geeignet

Batteriemodule oder -einheiten werden von Wh bis Mwh für erneuerbare Energiesysteme angeschlossen

Energiespeichersystem

Solarenergiespeicher

Solar-Straßenbeleuchtung

Elektrofahrzeug (EV)

Medizinisch

Telekommunikation

Roboter

UPS

Artikel
Spezifikation
Typ
Lithium Batterie
Stromspannung
51,2 V
Nennleistung
100Ah (0,2C/25°C) (Min:98Ah)
Energie
4200w
Betriebsspannungsbereich
42V-58,4V (Typisch: 51,2V)
Ladespannung
56.0V±1.0V
Entladeschlussspannung
42V±2,0V
Ladestrom
20A
Ladestrom (max.)
30A
Dauerstrom
50A
Entladestrom (max.)
100A
Monate Selbstentladung
≤3,5 %

Verpackung

lithium iron battery

Projekte

lithium iron battery

Verwandte Produkte
solar 10KW -15KW system
PV-Hybrid auf Netz-Solaranlage 10KW -15KW
3.2V 100Ah Cell
The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Nominal voltage: 3.2V Operational voltage: 2.5 V – 3.65 V Nominal Capacity: 100Ah Impedance (1KHz): 0.39±0.05mΩ Weight: 2.27±0.3kg Dimensions (mm): 200.33*172.2*33.22±0.5mm Cycle Performance: ≥6000Cycles Residual Capacity Loss: Per month ≤3.5% Charging Temperature: 0℃~55℃ Discharging Temperature: -30℃~55℃
20ft Container solar storage system
SCT is integrated with batteries,PCS,BMS,fire fighting system,temperature control system,monitoring system,EnerGeo aims to provide reliable energy supply for all fixed loads in the C&I industries, flexibly configuring various applications through the interfaces of control units, and exchanging operating data of battery systems with other devices. The modular design allows for various combinations of systems to adapt to different voltage and capacity requirements. Multiple battery cabinets can be connected in parallel to each other to provide a large-scale energy storage solution.The front-end of the system can be connected to solar system, and the back-end of the system can be connected to DC charging piles and forming an integrated solar + storage + charging project.
All-In-One Stackable  Battery
Power up your energy storage game with compact size, lightweight design, and effortless installation of standardized modules, leveraging the advantages of high voltage.Effortlessly customize battery combinations to meet your energy storage needs.
12.8V LiFePO4 Battery
SWT-POWER wall mounted Lithium battery (LiFePO₄ battery)home battery storage solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.
All-In-One Stackable  Battery
An efficient, safe, and intelligent home energy storage solution, featuring a convenient modular battery design and integrated inverter, EMS, and UPS management system. Seamlessly switch between power sources, remotely control your energy needs, and customize intelligent operating plans. It is a fully-integrated LiFePO4 battery system for residential usages. The system combines the most advanced battery management system with super power supply capacity to provide sustainable & green energy for your working and family usages all day.
3.2V 160Ah Cell
The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity:160Ah @ 0.5C discharge Discharge current 0.5C with 2.5V cut off. (25±2)℃ Typical Voltage:3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance:≤0.50mΩ Standard charge and discharge: Charge/Discharge Current 1C/1C Pulse Charge/Discharge Current(30s):0.5C/0.5C The maximum charge current of the battery does not exceed 1C under 0℃~45℃. Charging Temperature:0℃~60℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature:- 20~60℃ Battery can work at a specified temperature range with capacity loss intolerance. Typical dimension:174*54*153mm Weight:3.00±0.10kg Cycle Life at 25℃:≥6000 cycle @1C/1C

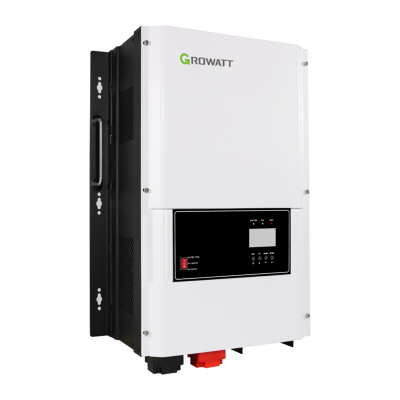

LOW FREQUENCY inverter
LF-HC Series is pure sine wave inverter with AC charge,UPS and AVR functions and built-in PWM or MPPT solar charge controller. Smart LCD display with easily user-configurable buttons shows comprehensive data of battery charge current and voltage,AC input     and output voltage,Load etc.With multiple optional operations modes and multiple protections,LF-HC series is perfect for solar power system,lights,computer,fan and other small-power household appliances.
